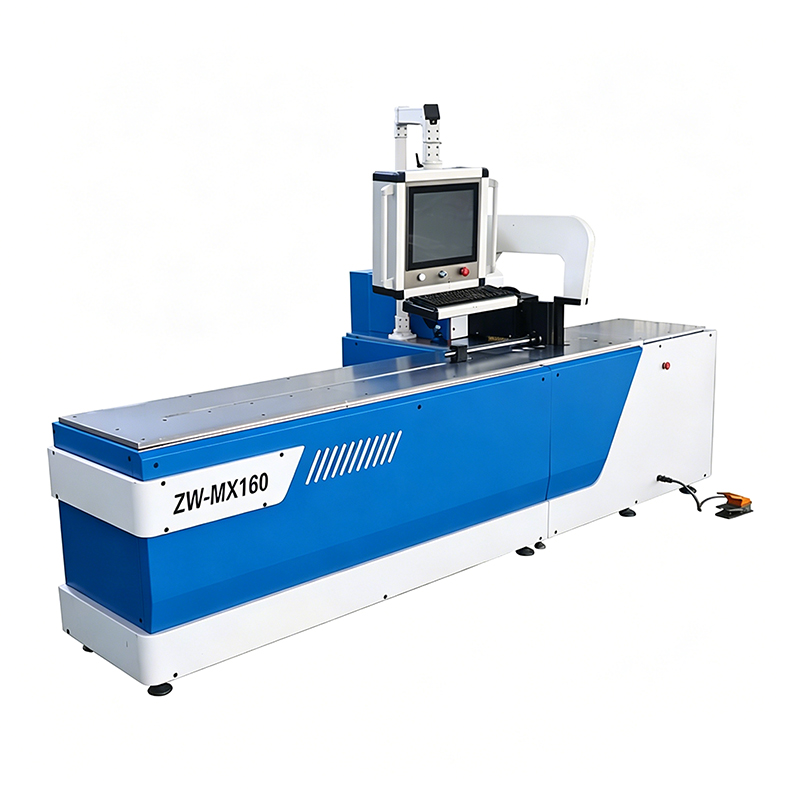

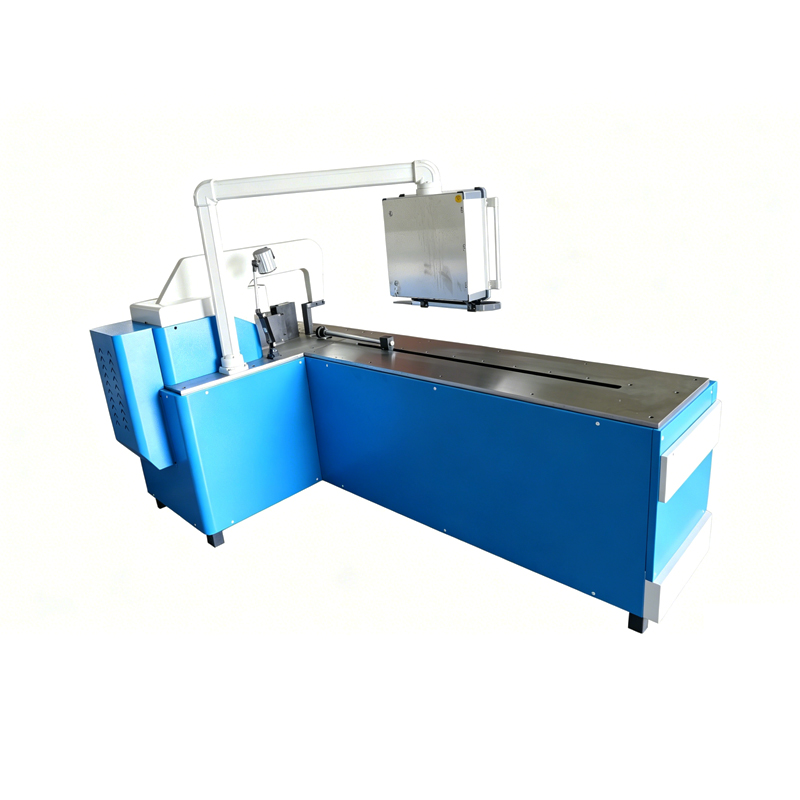

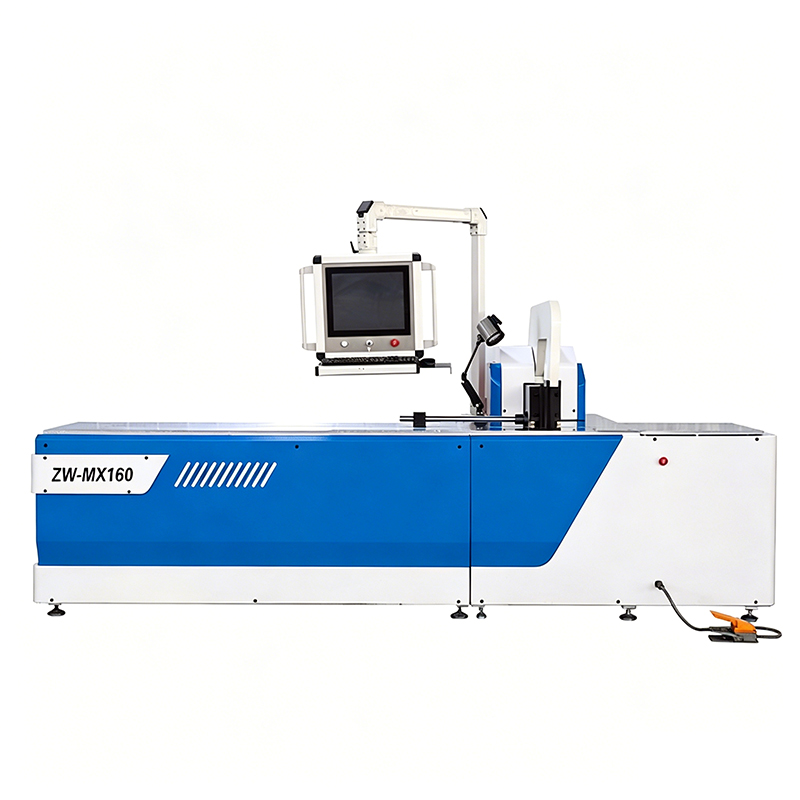

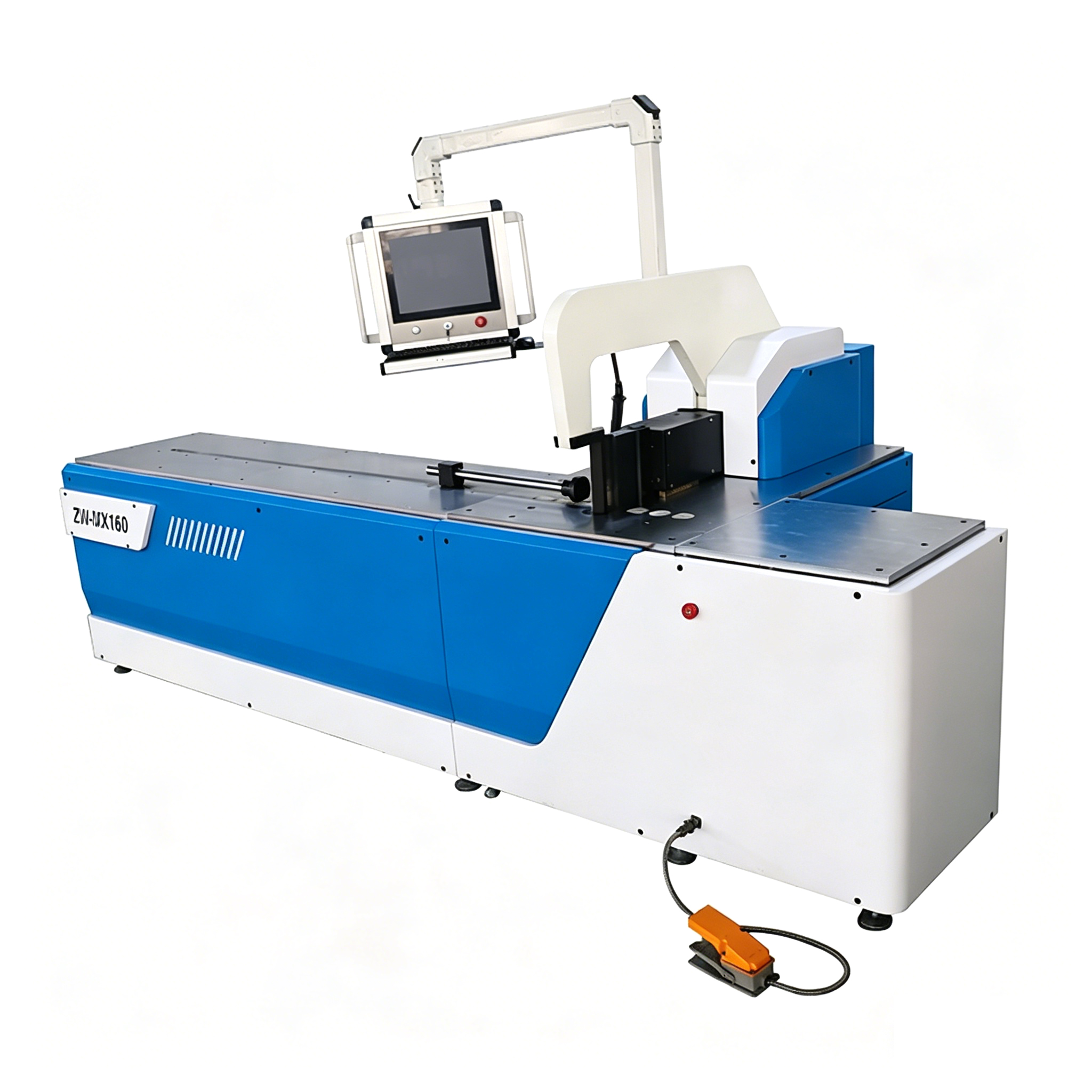

High Precision CNC Servo Busbar Bending Machine for Copper & Aluminum Busbars
CNC Busbar Bending Machine Bending Demo
Overview of Bus Bar Bending Machine Product
Our CNC Servo Busbar Bending Machine is a high-precision, servo-driven solution designed for forming copper and aluminum busbars in power distribution, switchgear, and transformer manufacturing. Equipped with advanced servo control technology, this machine delivers industry-leading angle accuracy of ±0.1° and supports both flat and vertical bending, making it the ideal choice for modern electrical equipment production lines.
Key Features

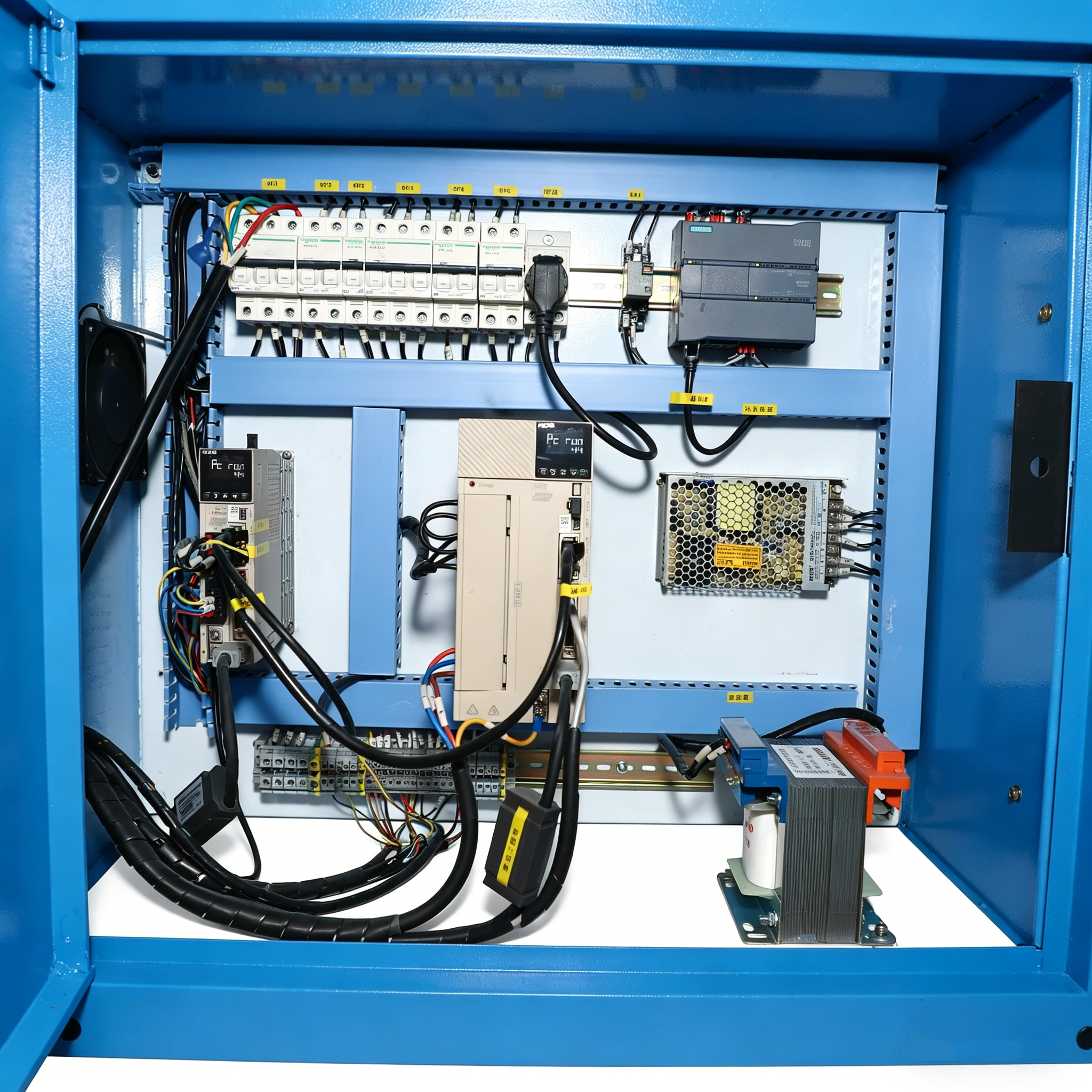

✅ High-Precision Servo Control SystemAdopts Siemens servo motors and drives for closed-loop control, ensuring stable performance and ±0.1° bending angle accuracy. Supports real-time angle feedback and automatic spring back compensation, eliminating manual adjustment errors.
✅ Multi-Function Bending CapabilitiesSupports flat bending, vertical bending, offset bending, and special-angle forming for busbars up to 16mm thickness and 250mm width. Compatible with standard and custom bending dies for diverse production needs.

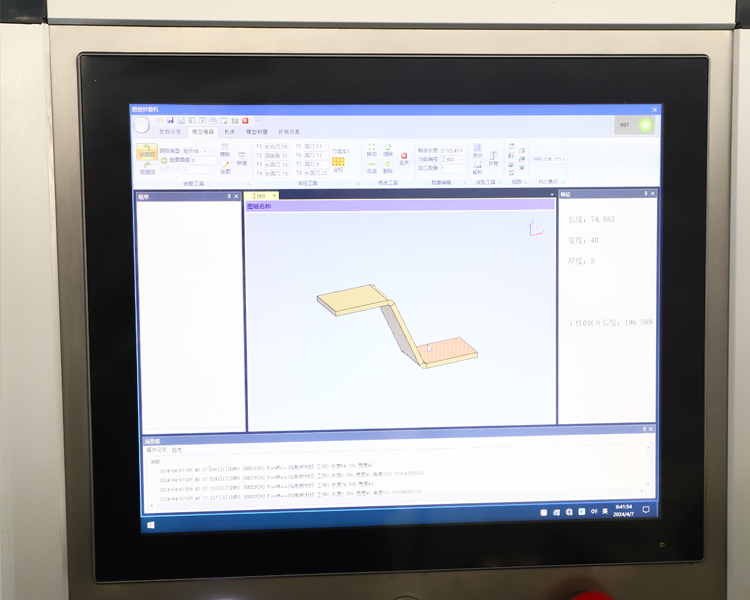

✅ User-Friendly CNC OperationFeatures an intuitive touchscreen interface with multi-language support (English, Spanish, French, etc.). Supports 2D/3D CAD drawing import, one-click program generation, and visual processing simulation, reducing setup time by 70%.
✅ Sturdy & Durable ConstructionBuilt with heavy-duty steel frame and HIWIN/TBI linear guides and ball screws, ensuring long service life and stable performance under continuous production.
✅ Efficient & Safe OperationServo-driven system reduces energy consumption by 30% compared to traditional hydraulic machines. Safety interlock systems and enclosed processing areas ensure operator safety, meeting CE/ISO safety standards.
✅ Flexible Production CompatibilityCompatible with both metric and imperial units, and can be integrated with MES/ERP systems for smart factory automation. Supports batch processing and single-piece custom forming for small to large-scale production.
Technical Specifications
|
parameters of the servo busbar bending machine |
|||||
|
1 |
nominal pressure KN |
400 |
2 |
Main motor power (KW) |
5.5 |
|
3 |
Bending angle ° |
+/-0.3 |
4 |
travel of spindle mm |
210 |
|
5 |
Block holding accuracy: mm |
+/-0.15 |
6 |
Maximum flat bend size (mm) |
16*160 |
|
7 |
Maximum curvature diameter in mm |
12*120 |
8 |
Block length: mm |
1500 |
|
9 |
machine weight KG |
3350 |
10 |
External dimensions (mm) |
3450*1200*1750 |
|
Random mold accessories |
|||||
|
1 |
R3 flat bending die |
1 set |
2 |
R5 flat bending die |
1 set |
|
3 |
R60 vertical bending mold |
1 set |
4 |
Random Tool |
1 set |
|
5 |
Manual/Factory Report |
1 set |
6 |
|
|
|
In addition to the aforementioned standard molds, we also offer a full range of alternative molds. Furthermore, we support customizing specialized molds tailored to customers' specific busbar processing requirements. |
|||||
