BSSK503 busbar processing machine
Model 503 Busbar Processing Machine - Working Demonstration

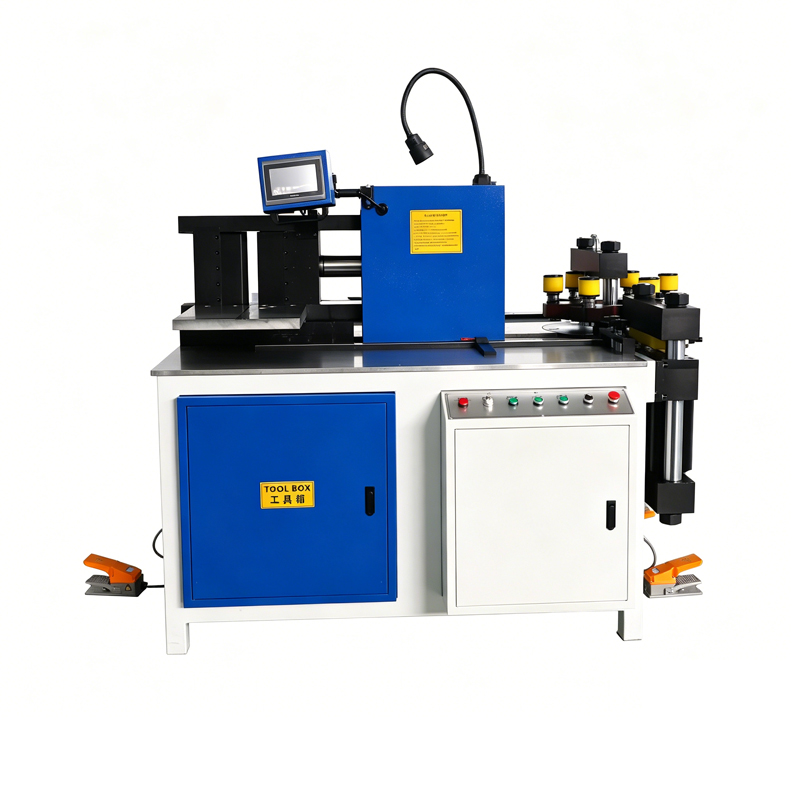

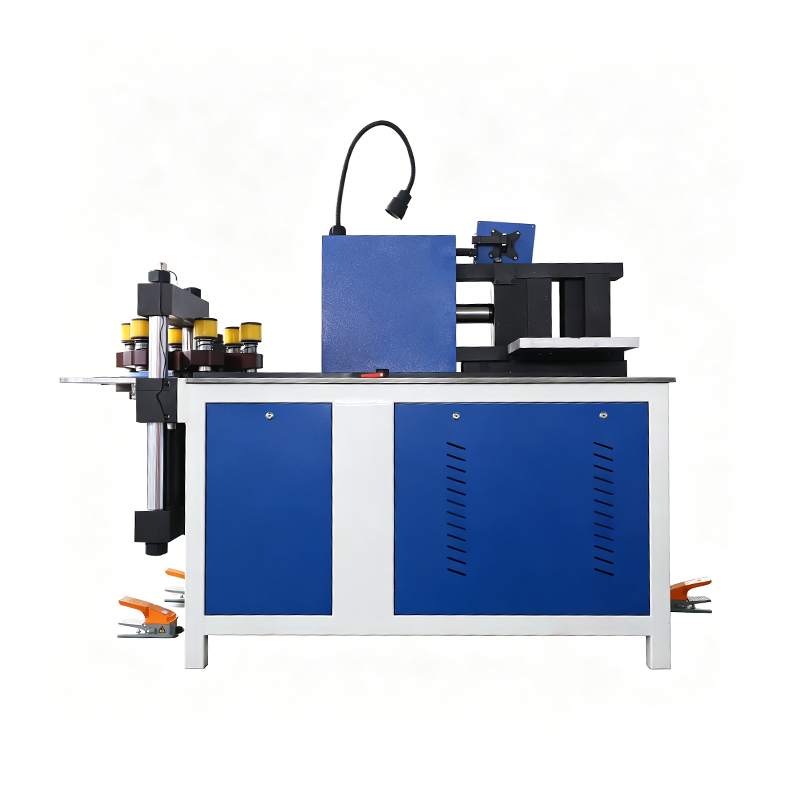

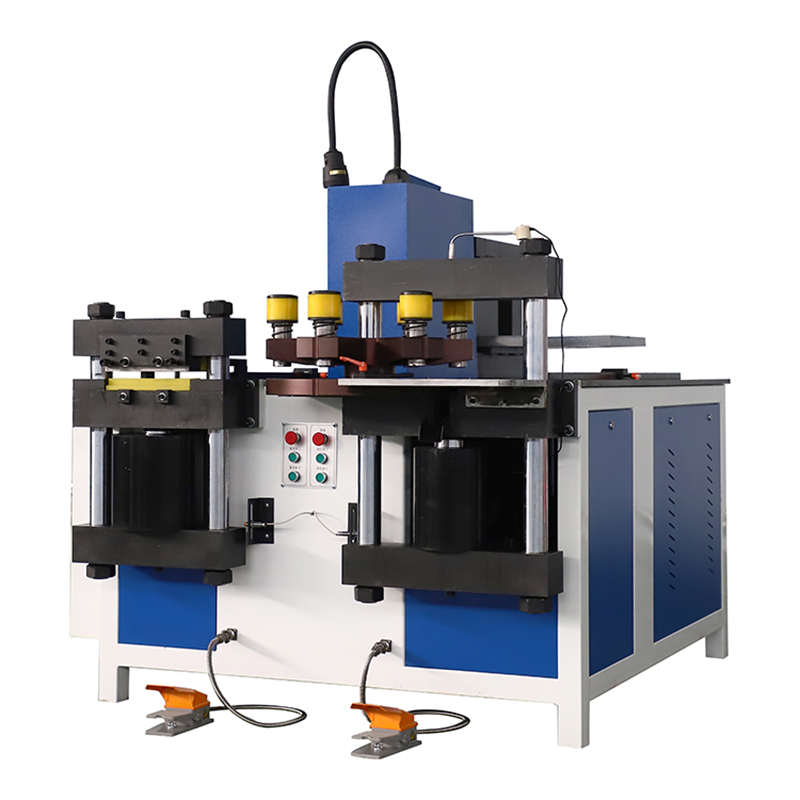

Introduction to Model 503 Busbar Processing Machine
The Model 503 Three-Station Busbar Processing Machine features an integrated frame design, combining a compact and stable structure with user-friendly operation and high efficiency. It allows multiple processes to be finished in a single clamping, drastically reducing material handling time and maximizing production throughput.
The punching station accommodates various hole configurations, including round holes, slotted holes, and square holes. The shearing station produces smooth, burr-free cross-sections, while the bending station achieves precise 0–180° forming of L-shapes, U-shapes, Z-shapes, and other custom profiles—fully meeting diverse busbar processing needs.
Powered by a precise CNC system and reliable mechanical performance, the Model 503 delivers exceptional processing accuracy and consistent repeatability, effectively ensuring the reliability and electrical performance of busbar connections. Its intuitive operation interface and flexible parameter adjustment capabilities make it ideal for both mass production and customized processing of busbars with different specifications (thickness: 1–16mm, width: ≤260mm).
As a premium solution for the electrical manufacturing industry, it empowers enterprises to boost productivity while upholding superior product quality.
Core parameters for copper-aluminum busbar processing
|
503 Busbar Processing Machine: Parameters for Copper and Aluminum Bar Processing |
|
|
Punching Function |
|
|
Maximum punching force (KN) |
500 |
|
Punching processing range: mm |
φ4.3- φ34 |
|
Maximum processing thickness: mm |
16 |
|
Maximum processing width (mm) |
260 |
|
Cut Function |
|
|
Maximum shear force (KN) |
500 |
|
Maximum shear width (mm) |
260 |
|
Maximum shear thickness (mm) |
16 |
|
Bending Function |
|
|
Maximum bending force (KN) |
500 |
|
Maximum bending width (mm) |
260 |
|
Maximum bending thickness (mm) |
16 |
|
Folded bend function |
|
|
Bending width (mm) |
100 (10 mm thick) |
|
Processing Error |
±1º |
|
outline dimension （mm） |
1800*1500*1300 |
|
Main motor power (KW) |
3×5.5KW |
|
machine weight （T） |
1.7 |
|
The 503 busbar processing machine comes standard with molds. |
|
|
List of molds for busbar processing machines |
φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |
|
One set of shear molds |
260 |
|
4 sets of bending molds |
R5, R3, vertical bend, U-shaped bend |
|
1 set of embossing molds |
260×40 |
|
In addition to the aforementioned standard molds, we also offer a full range of alternative molds. Furthermore, we support customizing specialized molds tailored to customers' specific busbar processing requirements. |
|

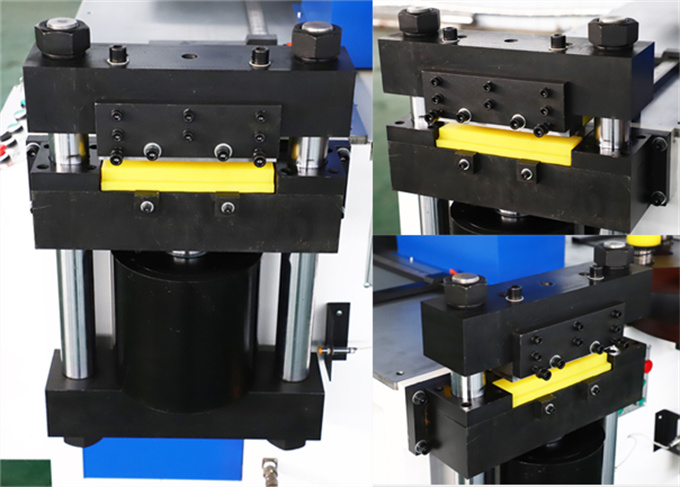

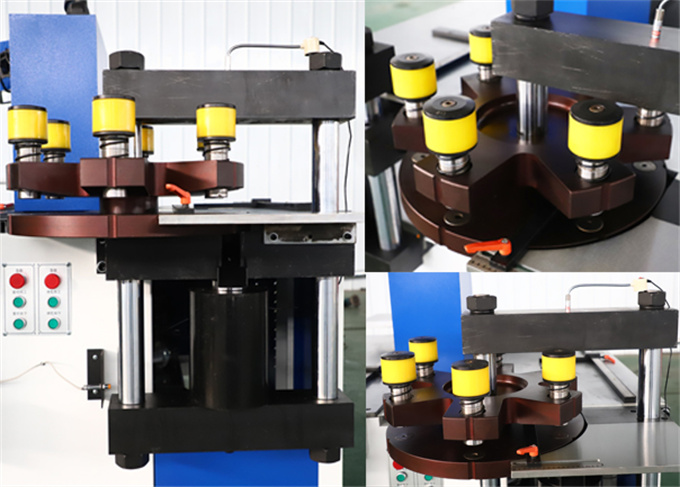

503 3-Station Busbar Processing Machine: Product Details Showcase

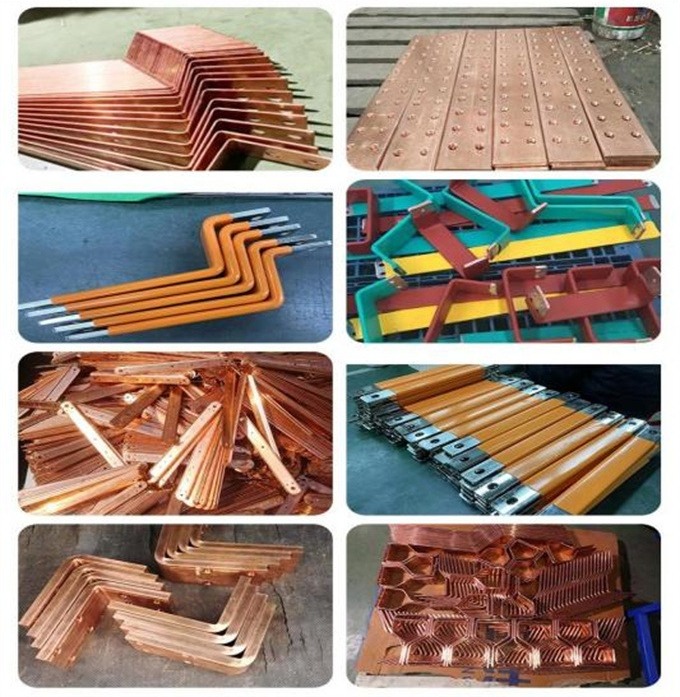

503 Busbar Machine: Finished Product Examples
