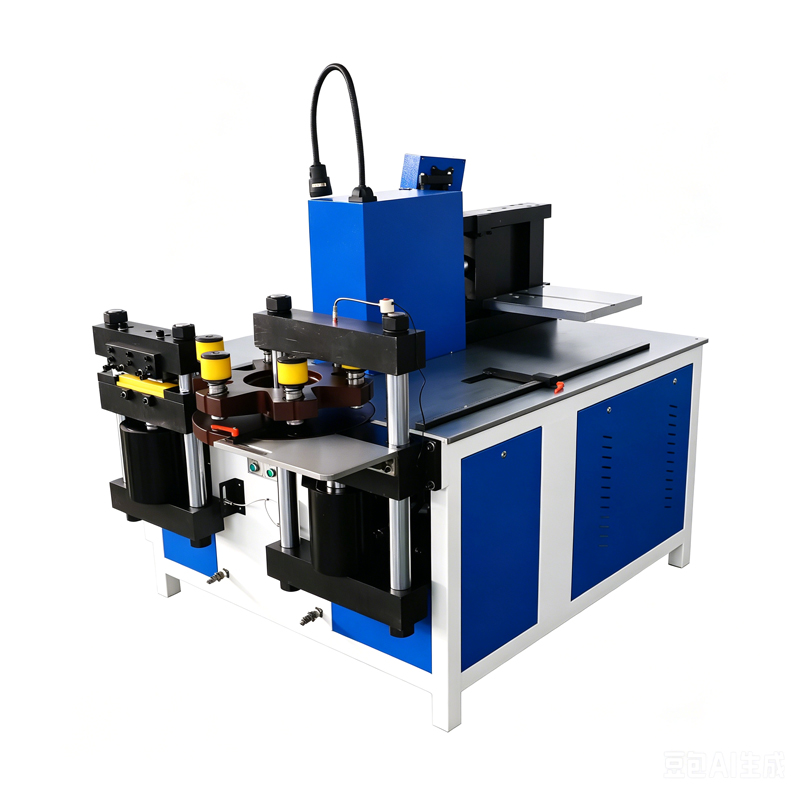

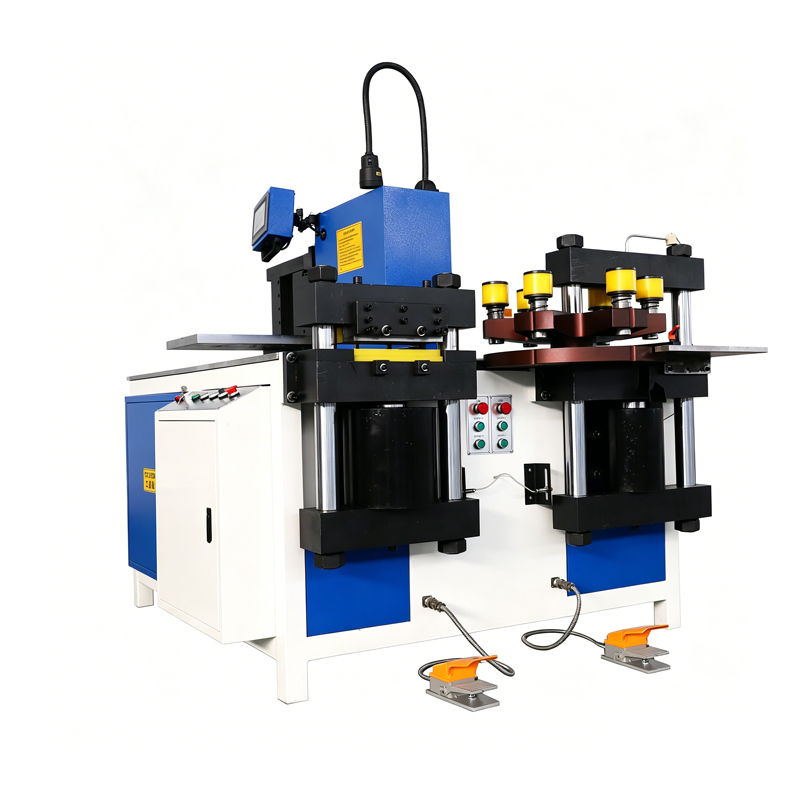

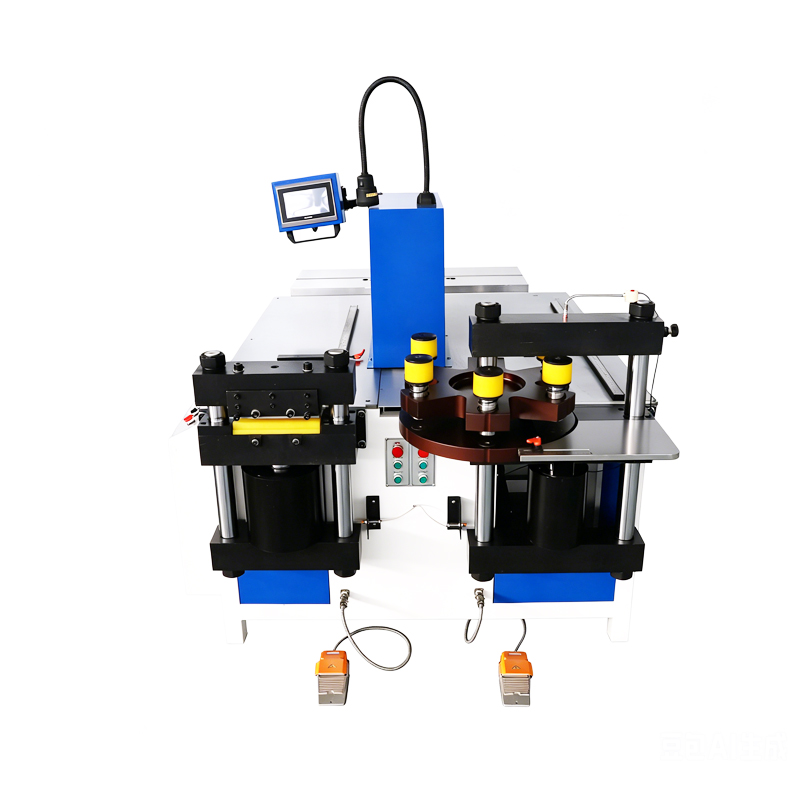

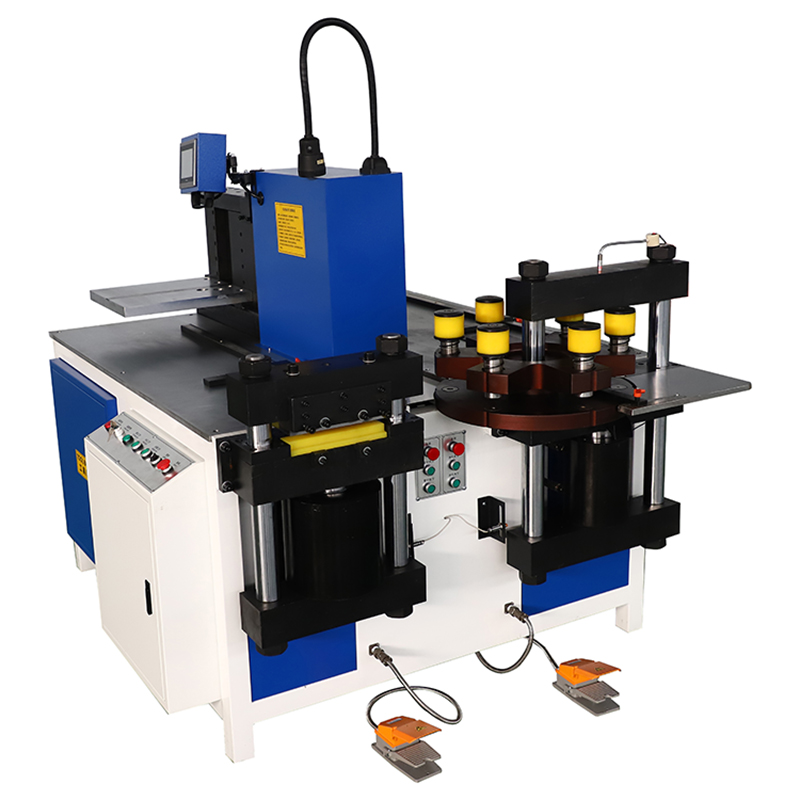

803 Hydraulic 3-in-1 Busbar Processing Machine for Copper & Aluminum
803 Busbar Machine Processing Demo: Shearing, Punching, Bending
Core Advantages of the 803 Busbar Machine:
✅ 3-in-1 Multi-function: Punching, Shearing, Bending in one station
✅ 800kN Heavy-duty Hydraulic System: Handles thick & wide busbars easily
✅ High Precision: ±1° bending tolerance for accurate workpieces
✅ Wide Compatibility: Works with copper and aluminum busbars
✅ Flexible Mold Options: Standard molds included, custom molds available
✅ Easy Operation: Pedal control for safe and efficient processing
✅ Durable Build: Industrial-grade components for long service life
3-Station Working Principle:
The machine features 3 independent working stations:

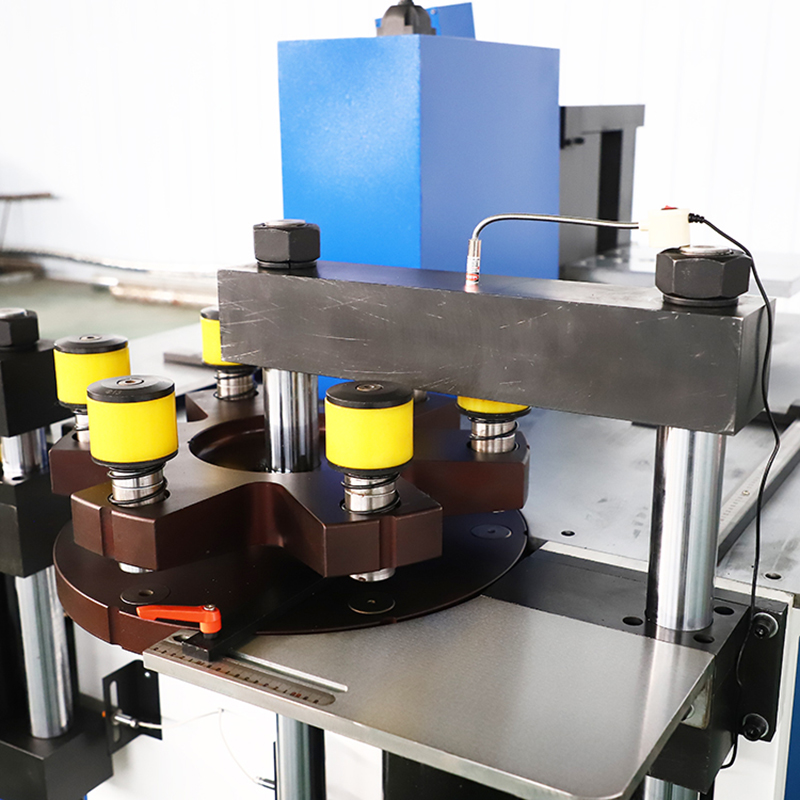

1. Punching station: For drilling holes in busbars

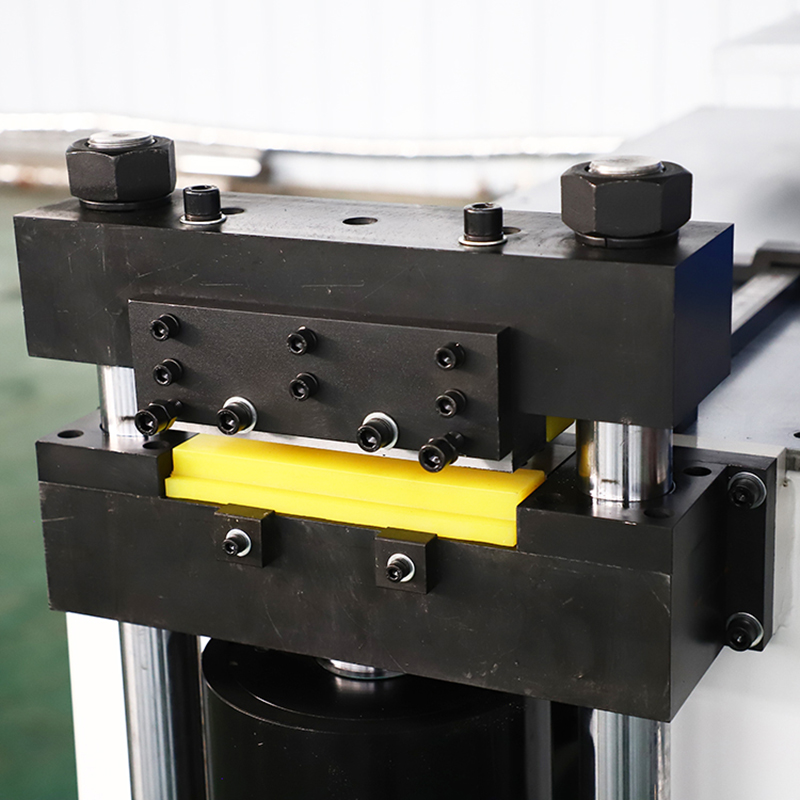

2. Shearing station: For cutting busbars to required lengths

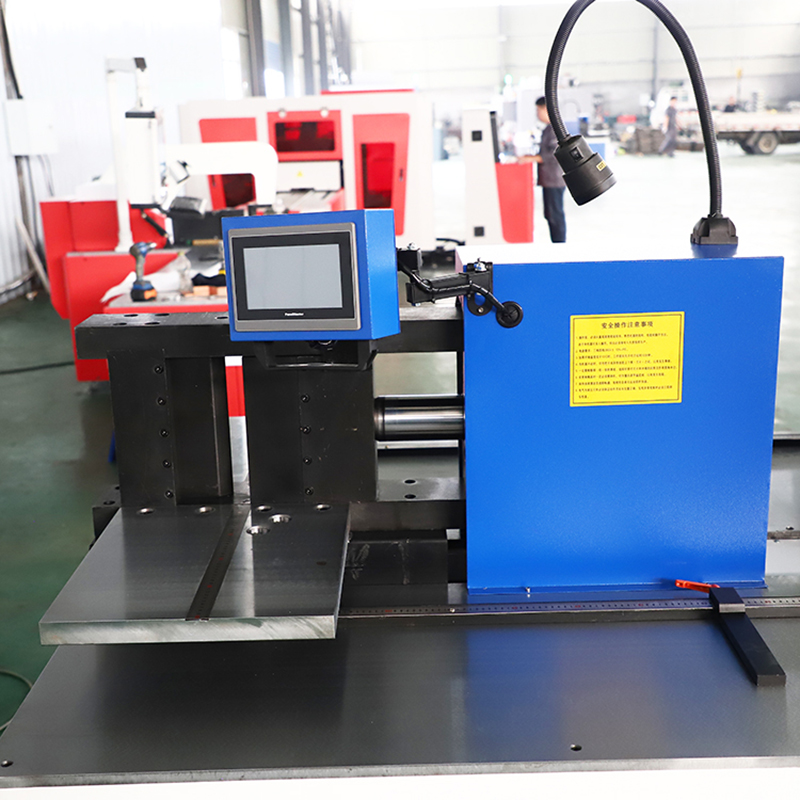

3. Bending station: For forming angles and shapes
All stations work with a stable hydraulic system for smooth, fast processing.
Core parameters for copper-aluminum busbar processing
|
803 Busbar Processing Machine: Parameters for Copper and Aluminum Bar Processing |
|
|
Punching Function |
|
|
Maximum punching force (KN) |
800 |
|
Punching processing range: mm |
φ4.3- φ34 |
|
Maximum processing thickness: mm |
20 |
|
Maximum processing width (mm) |
300 |
|
Cut Function |
|
|
Maximum shear force (KN) |
800 |
|
Maximum shear width (mm) |
300 |
|
Maximum shear thickness (mm) |
20 |
|
Bending Function |
|
|
Maximum bending force (KN) |
800 |
|
Maximum bending width (mm) |
300 |
|
Maximum bending thickness (mm) |
20 |
|
Folded bend function |
|
|
Bending width (mm) |
100 (10 mm thick) |
|
Processing Error |
±1º |
|
outline dimension （mm） |
2060*1620*1680 |
|
Main motor power (KW) |
3×7.5KW |
|
machine weight （T） |
2.3 |
|
The 803 busbar processing machine comes standard with molds. |
|
|
List of molds for busbar processing machines |
φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |
|
One set of shear molds |
300 |
|
4 sets of bending molds |
R5, R3, vertical bend, U-shaped bend |
|
1 set of embossing molds |
300×40 |
|
In addition to the aforementioned standard molds, we also offer a full range of alternative molds. Furthermore, we support customizing specialized molds tailored to customers' specific busbar processing requirements. |
|
