Open-Frame 3-in-1 Busbar Punching Shearing Bending Machine
303 Busbar Processing Machine - Shearing/Drilling/Bending Demonstration
Product Overview
The KSSK-303 Open-Type 3-Station Busbar Processing Machine is a compact, entry-level 3-in-1 solution specifically designed for small to medium-scale busbar fabrication workshops. As a member of the three-station busbar machine family, it features an open-frame design that sets it apart from enclosed models, offering exceptional flexibility and ease of use. It integrates punching, shearing, and bending functions into one unit, ideal for processing copper and aluminum busbars up to 160×16mm.
Unlike standard three-station busbar machines, the KSSK-303 is optimized for smaller production volumes and tighter workshop spaces, making it the perfect choice for low-voltage switchgear, transformer, and power distribution equipment manufacturers looking for a cost-effective, reliable busbar processing solution.
Key Features
✅ Open-Frame Design for Easy OperationThe open structure allows for quick and easy loading/unloading of long busbars, eliminating the limitations of enclosed models. Operators can access the work area from multiple angles, reducing handling time and improving workflow efficiency.
✅ 3-in-1 Integrated FunctionsCombines three core busbar processing operations in one compact footprint:
- Punching: Clean, precise holes for electrical connections
- Shearing: Straight, burr-free cuts for accurate busbar lengths
- Bending: Smooth, repeatable bends for custom busbar profiles
✅ Ideal for 160×16mm BusbarsSpecifically calibrated for processing copper and aluminum busbars within the 160×16mm range, ensuring consistent quality and dimensional accuracy for small to medium-sized busbar applications.
✅ Compact & Space-SavingDesigned for small workshops with limited floor space, the KSSK-303 eliminates the need for three separate machines, saving valuable workspace while maintaining full functionality.
✅ Cost-Effective Entry-Level SolutionOffers all the essential features of a three-station busbar machine at a more accessible price point, making it ideal for new businesses or those looking to expand their busbar processing capabilities without a large investment.
✅ Reliable Hydraulic PerformanceEquipped with a stable hydraulic system that delivers consistent power and precision, ensuring every punch, cut, and bend meets the required specifications for electrical safety and performance.
Core parameters for copper-aluminum busbar processing
|
Main Parameters of the 303 Busbar Processing Machine |
|
|
Punching Unit |
|
|
Maximum punching force (KN) |
350 |
|
Punching processing range: mm |
φ4.3- φ25 |
|
Maximum processing thickness: mm |
16 |
|
Maximum processing width (mm) |
160 |
|
Cut Unit |
|
|
Maximum shear force (KN) |
400 |
|
Maximum shear width (mm) |
160 |
|
Maximum shear thickness (mm) |
16 |
|
Bending Unit |
|
|
Maximum bending force (KN) |
350 |
|
Maximum bending width (mm) |
160 |
|
Maximum bending thickness (mm) |
16 |
|
Standing angle processing |
|
|
Bending width (mm) |
30-100 |
|
U-shaped bend processing |
|
|
Minimum bending width (mm) |
50 |
|
Bending Precision |
±1º |
|
outline dimension |
1780*1400*1200 |
|
Workbench size (mm) |
1400×1250×1200 |
|
Main motor power (KW) |
3×4KW |
|
machine weight （T） |
1.5 |
|
List of molds for busbar processing machines |
|
|
List of molds for busbar processing machines |
φ7、φ9、φ11、φ13、φ17、φ21、φ13×18 φ17×21 |
|
One set of shear molds |
160 |
|
4 sets of bending molds |
R5, R3, vertical bend, U-shaped bend |
|
1 set of embossing molds |
160×40 |
|
In addition to the aforementioned standard molds, we also offer a full range of alternative molds. Furthermore, we support customizing specialized molds tailored to customers' specific busbar processing requirements. |
|

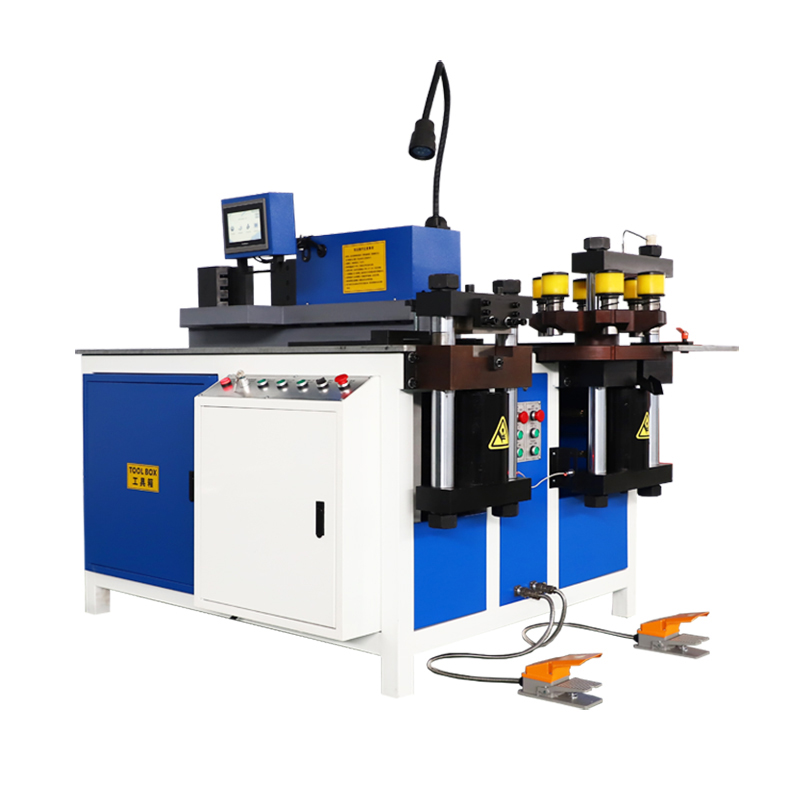

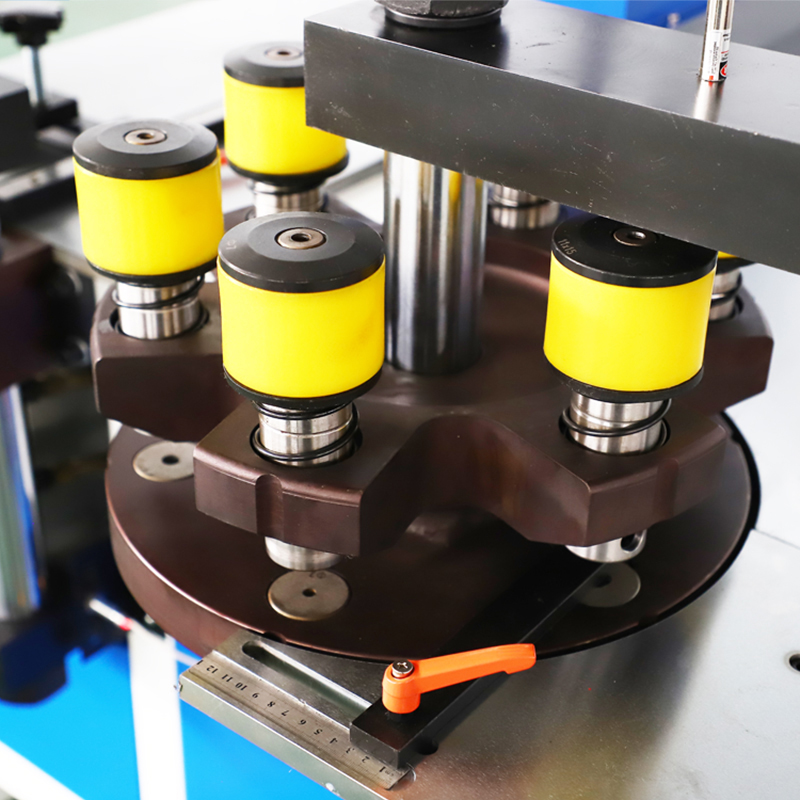

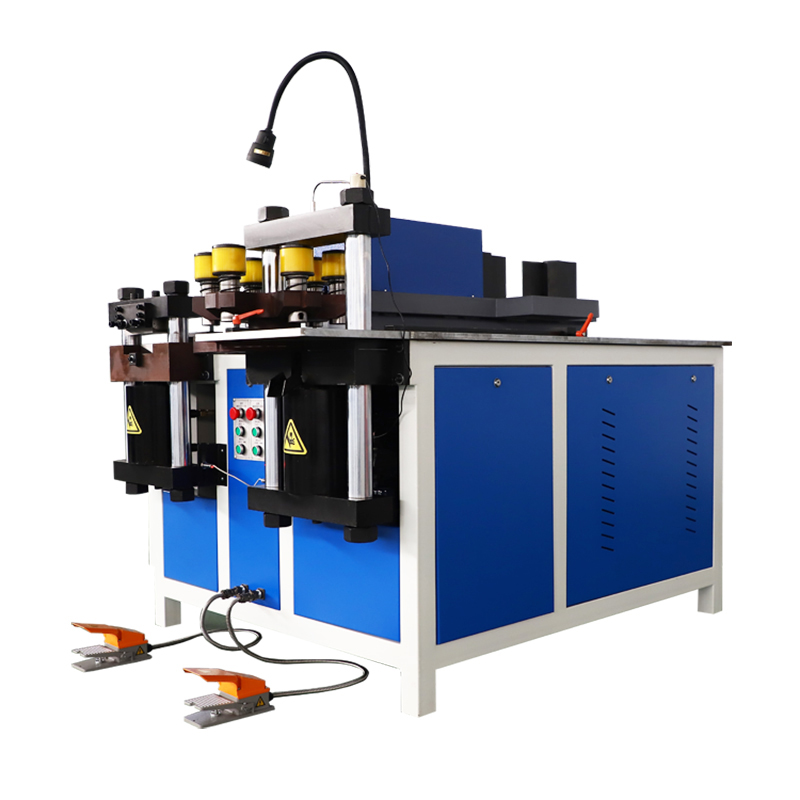

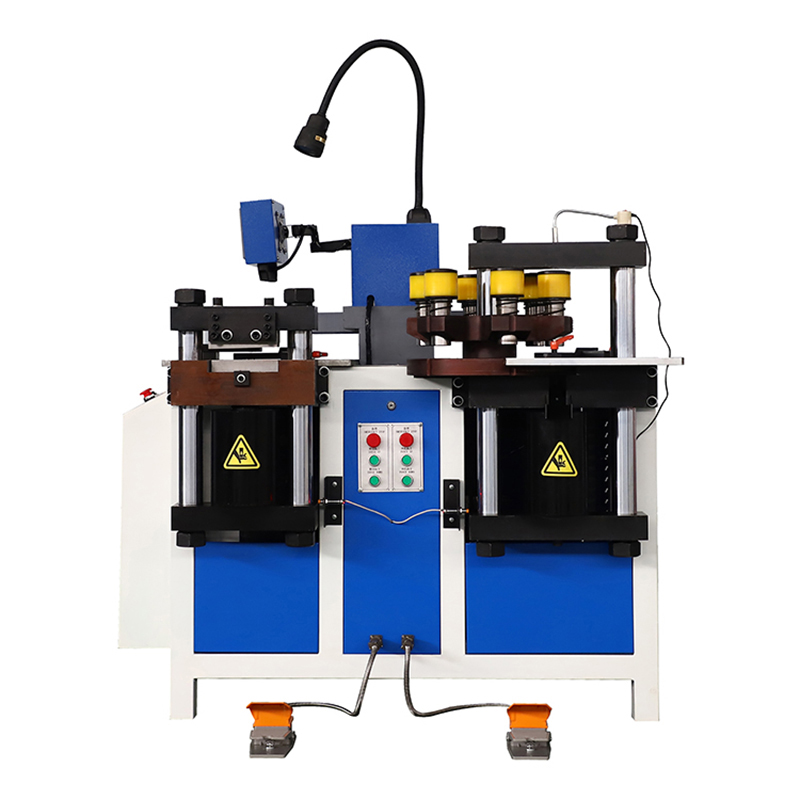

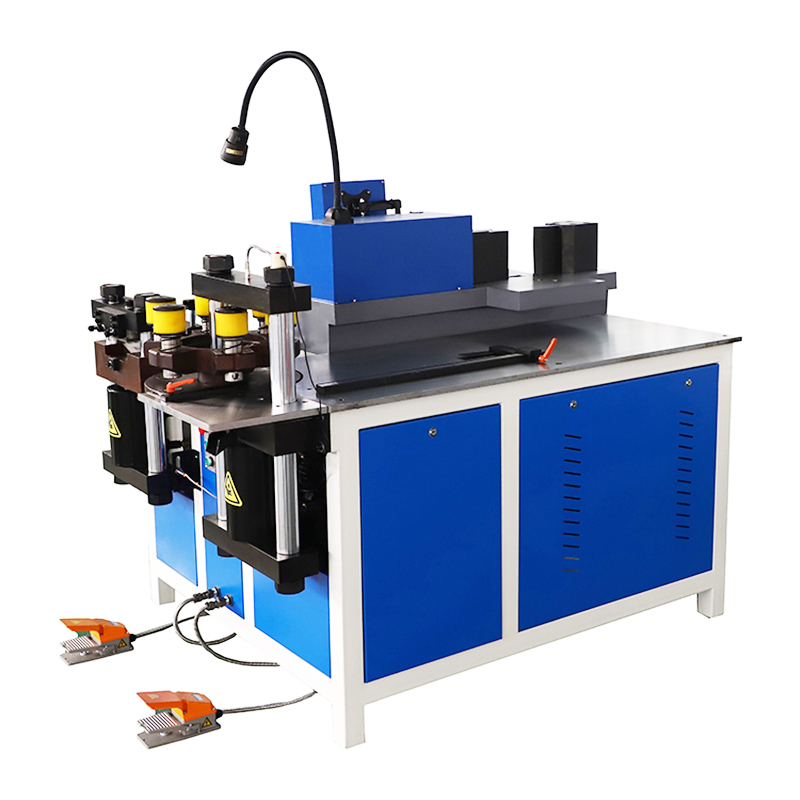

Details of the 303 busbar processing equipment display
