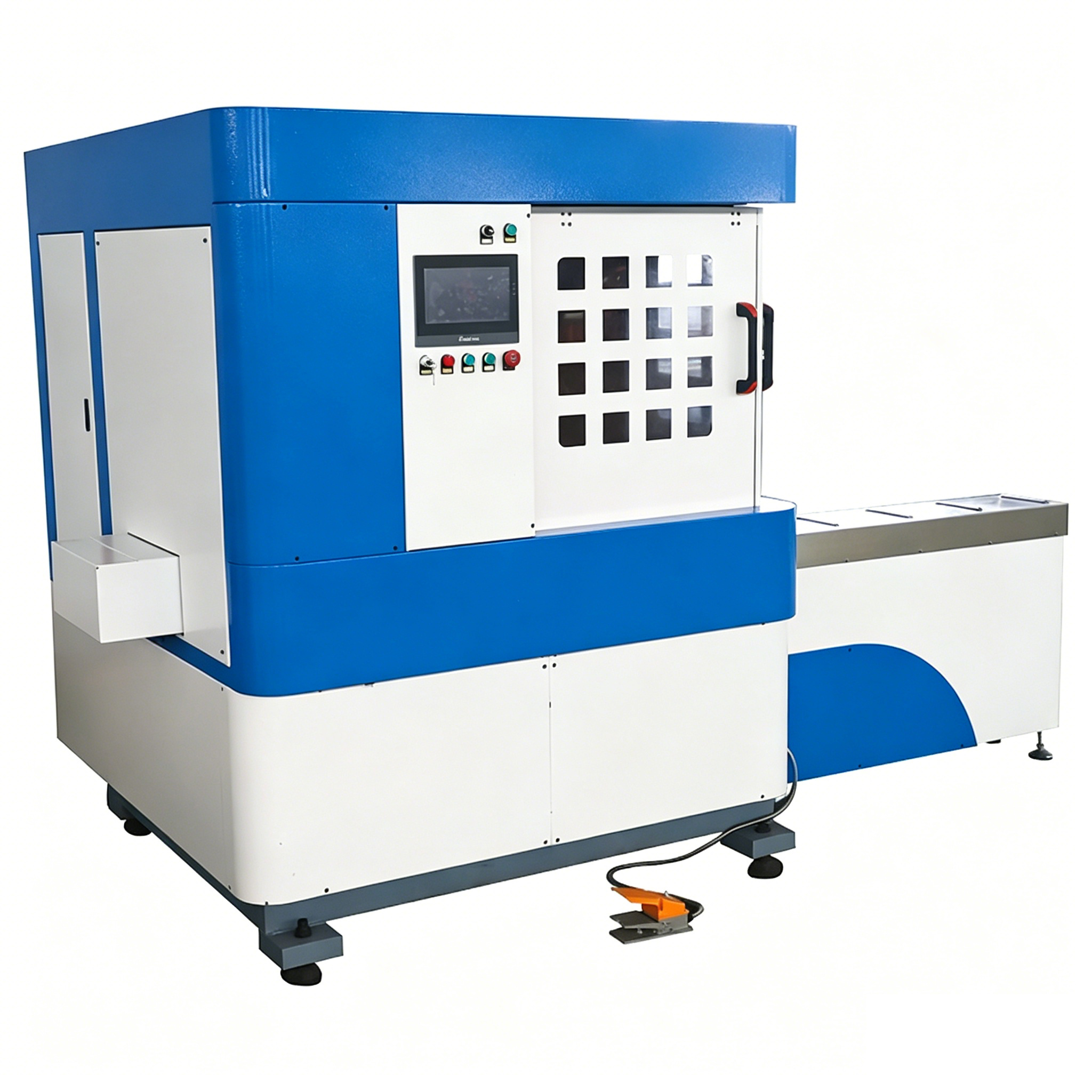

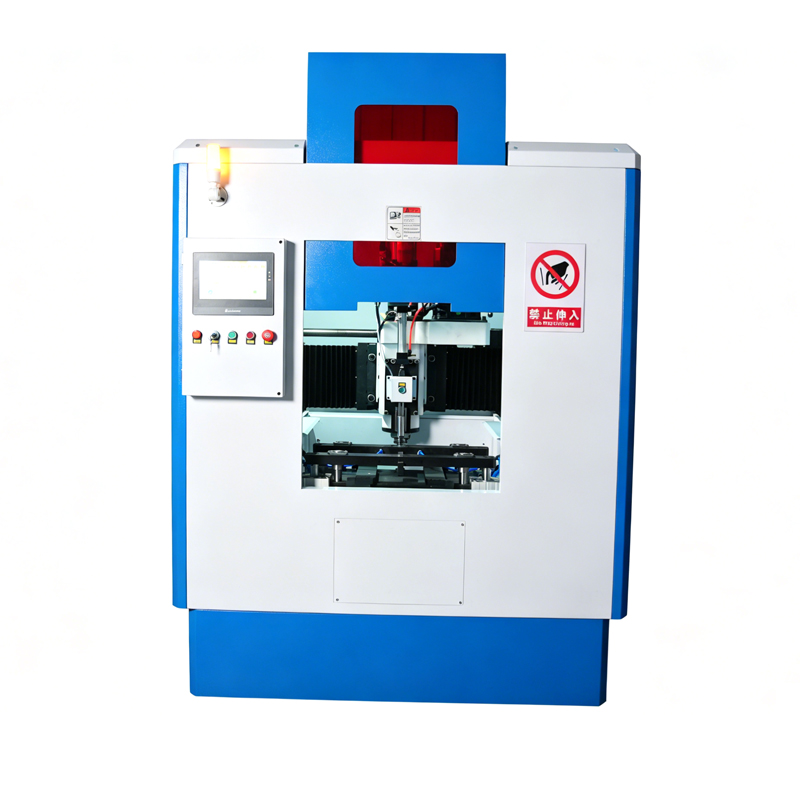

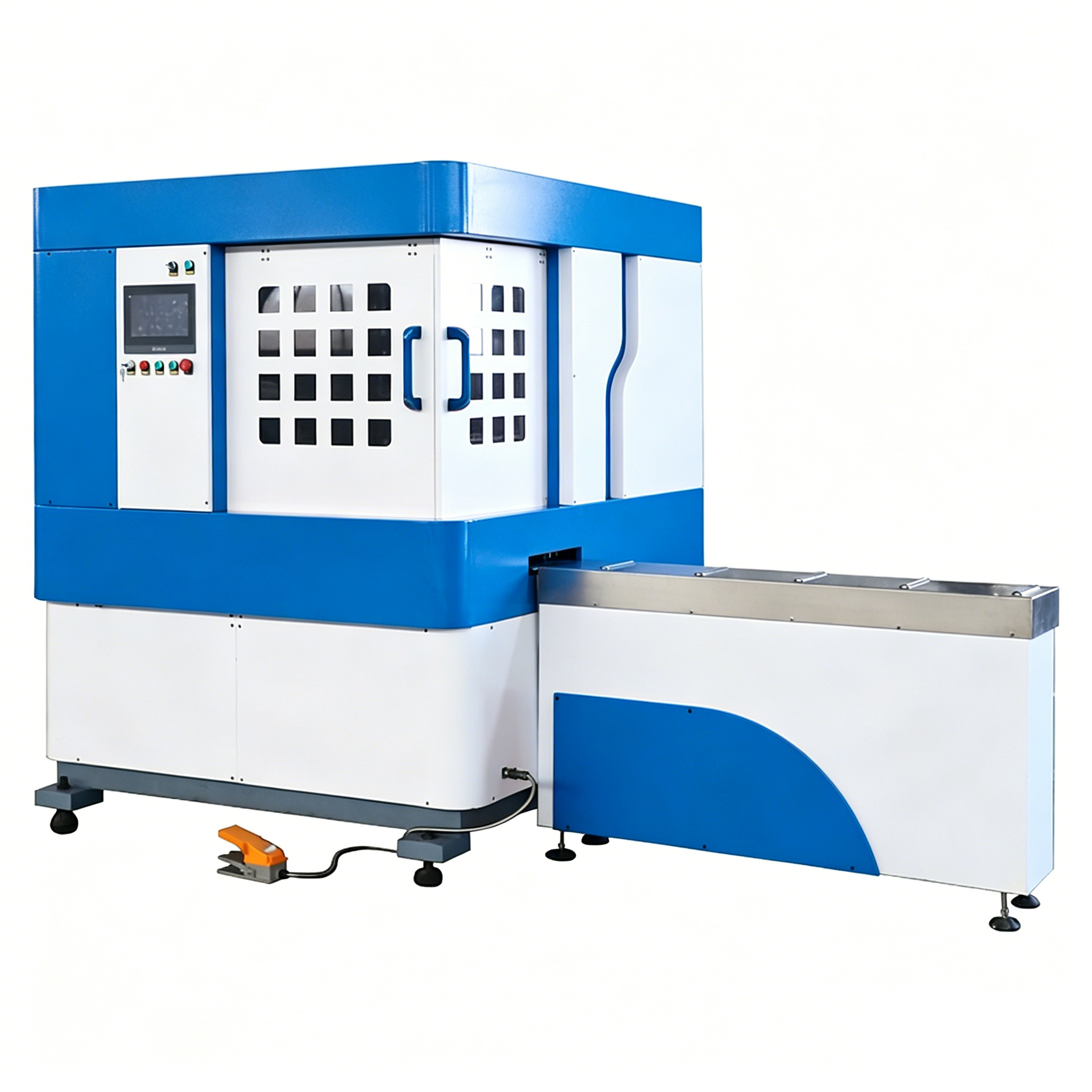

Copper and aluminum busbar arc processing machine
Demonstration of Busbar Arc Machining Machine Processing
Product Overview
Our CNC Busbar Chamfering & Arc Machining Machine is a high-precision solution designed for deburring, chamfering, and arc processing of copper and aluminum busbars in switchgear, transformer, and power distribution equipment manufacturing. This machine eliminates sharp edges and burrs, creating smooth, safe arc and chamfer profiles that meet IEC standards for electrical busbar assembly.
Key Features

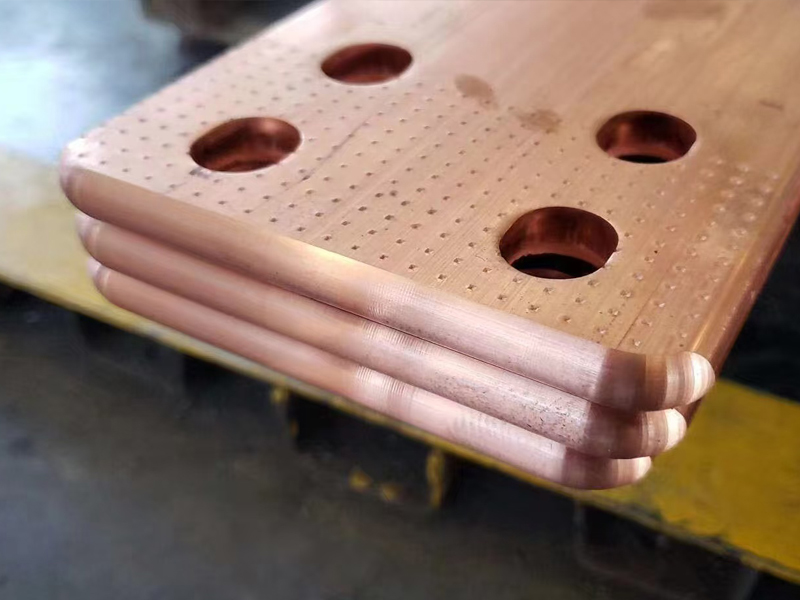

✅ Multi-Function MachiningSupports full busbar arc rounding, 45°/90° chamfering, and edge deburring in one setup, eliminating manual finishing processes. It delivers smooth, burr-free edges that prevent arcing and ensure safe electrical connections.

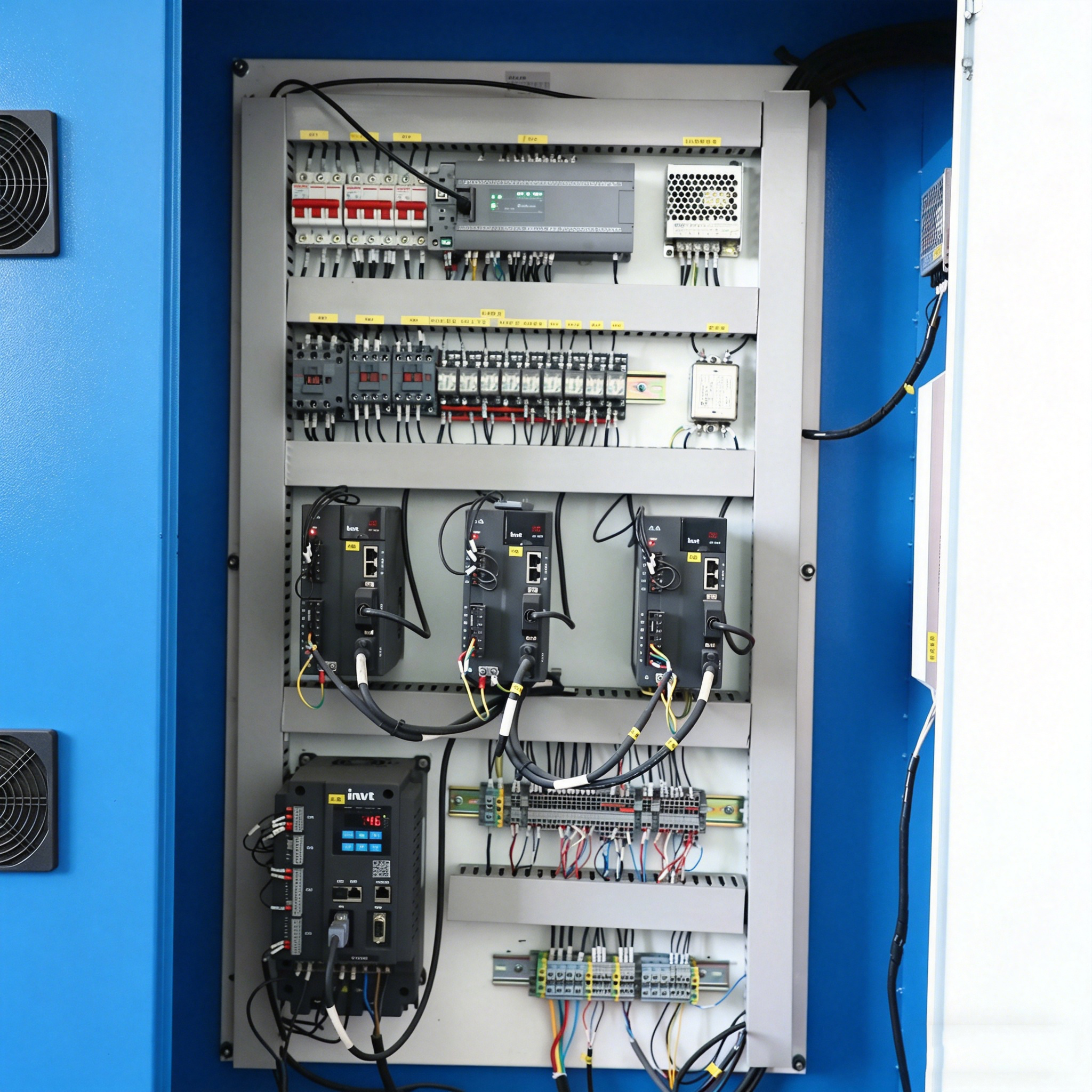

✅ High Precision CNC ControlEquipped with an industrial-grade CNC system for consistent chamfer/arc dimensions, ensuring every busbar meets your design specifications. The system supports customizable chamfer depths, arc radii, and profiles for diverse project requirements.
✅ Sturdy & Durable ConstructionBuilt with a heavy-duty steel frame and high-precision linear guides, the machine maintains stable performance even under continuous production. The high-speed cutting spindle ensures clean, precise cuts with minimal tool wear.

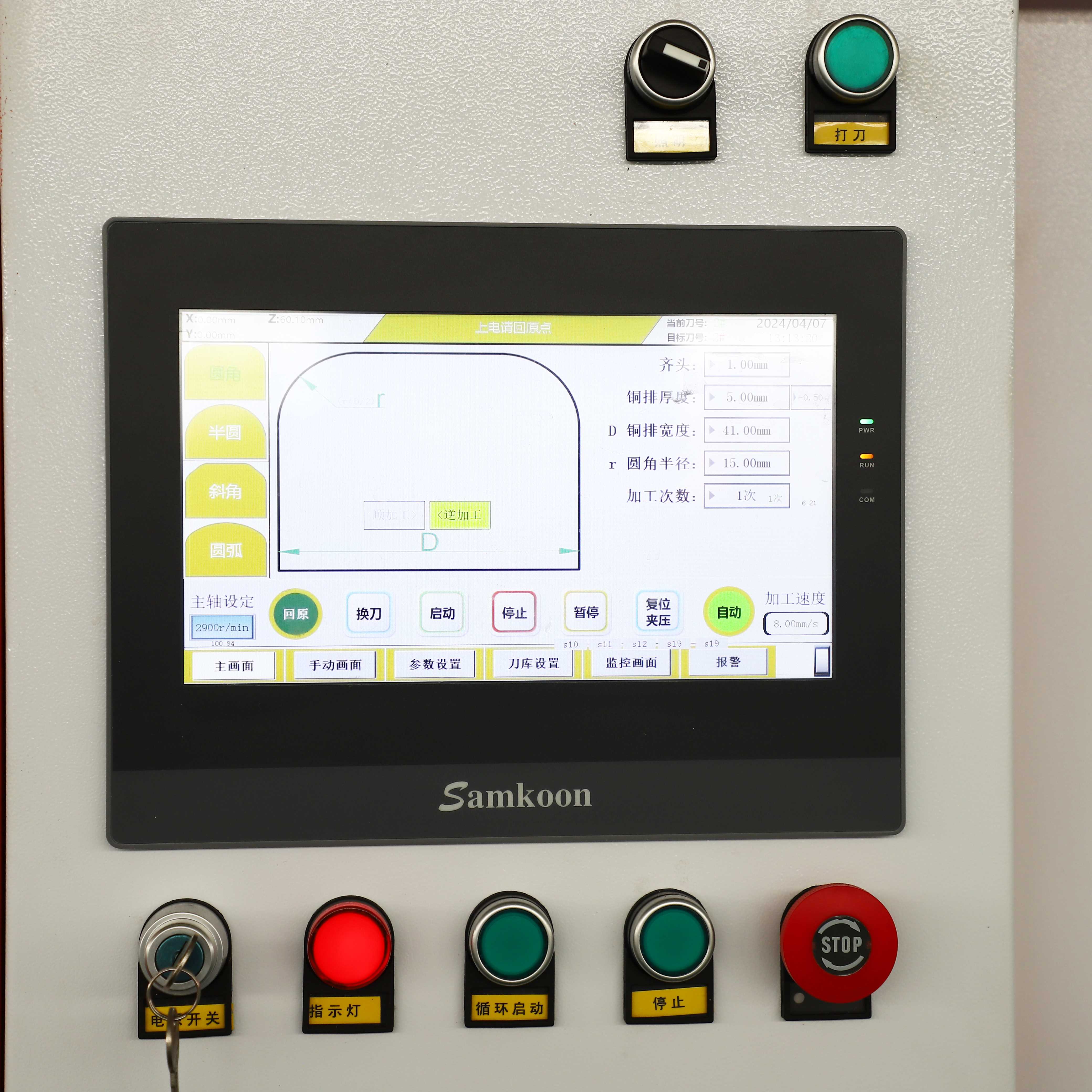

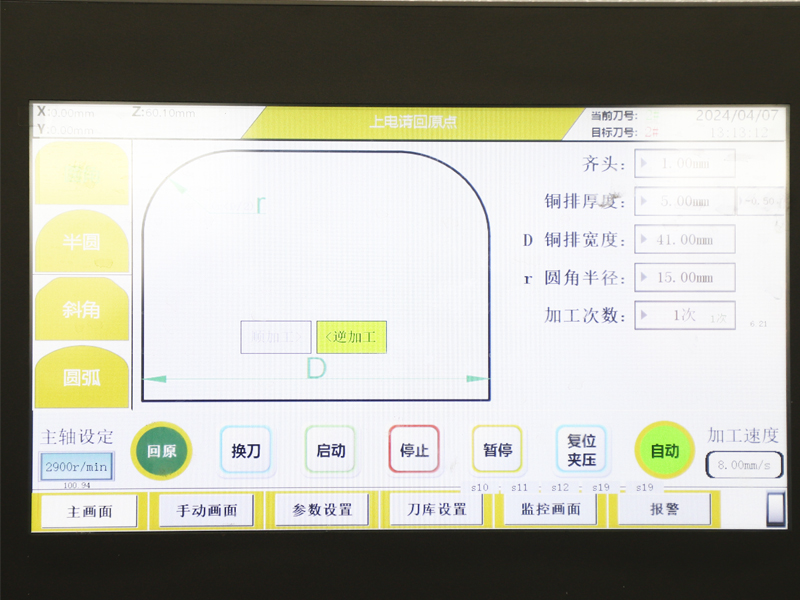

✅ Easy Operation & Low MaintenanceFeatures an intuitive touchscreen interface with pre-set programs for common busbar profiles. Tool changeovers are quick and simple, reducing setup time. The enclosed work area collects metal chips and dust for a cleaner, safer working environment.
✅ Versatile CompatibilityWorks with both copper and aluminum busbars of various thicknesses and widths, making it ideal for small to large-scale busbar fabrication in electrical equipment factories.
Technical Specifications
|
name |
unit |
parameter |
|||
|
cutting tip |
main shaft speed |
Minutes/Second |
4000 |
||
|
|
power of motor |
Kw |
5.5 |
||
|
|
Wrench handle model |
|
BT40 |
||
|
Feed section |
X-axis stroke |
mm |
560 |
||
|
|
Y-axis stroke |
mm |
350 |
||
|
|
Servo power |
KW |
2 x 1.5 |
||
|
|
Work feed rate |
mm/min |
3000 |
||
|
Tool parameter (diameter) |
mm |
70 |
|||
|
Number of tool magazines |
individual |
6 pieces |
|||
|
Minimum allowable length of the panel |
mm |
160 |
|||
|
Maximum allowable panel dimensions (width × thickness) |
mm |
200×12 |
|||
|
Minimum required plate dimensions (width × thickness) |
mm |
30×3 |
|||
|
total weight |
KG |
1960 |
|||
|
Host site area: length × width |
mm |
1900 (including the feed rack: 3400) * 1600 * 2050 |
|||
|
bleed pressure |
Mpa |
0.5-0.65 |
|||
|
Total power of the power supply |
KW |
9 |
|||
|
Random Mold |
|||||
|
Cutting handle |
BT40-GA70 |
6 sets |
|||
|

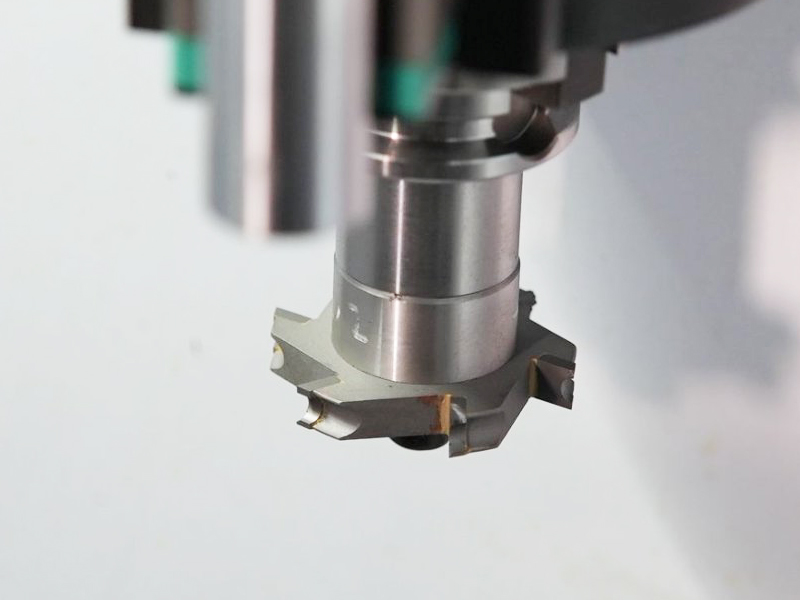

cutter |
R6.5*70 |
1 set (suitable for copper busbars with a thickness of 11–12 mm) |
|||
|
|
R5.5*70 |
1 set (suitable for copper busbars with a thickness of 9–10 mm) |
|||
|
|
R4.5*70 |
1 set (suitable for copper busbars with a thickness of 7–8 mm) |
|||
|
|
R3.5*70 |
1 set (suitable for copper busbar thickness of 6 mm) |
|||
|
|
R3*70 |
1 set (suitable for copper busbars with a thickness of 5 mm) |
|||
|
|
R2.5*70 |
1 set (suitable for copper busbars with a thickness of 3–4 mm) |
|||
Product details
